产品展示
产品
- Product introduction
- Construction features

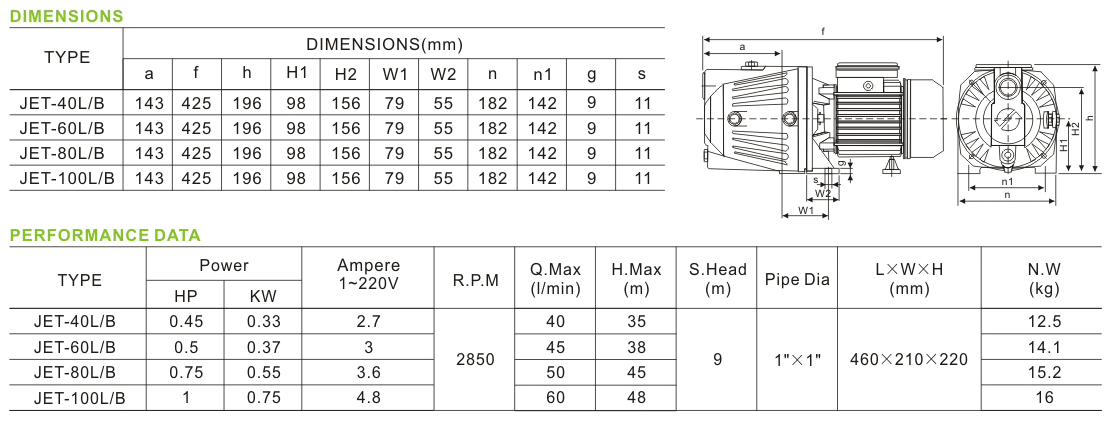

- Technical data
-
- 商品名称: JET-L series
- 商品编号: JET-L
The JET-L & JET-B series pumps are with an automatic ejector system, find many uses in domestic applications, gardens and supply water from wells, and So on.
These pumps are suitable for clean water and chemically non-aggressive liquid. They are very reliable, safe and simple to use.
-
- Pump body: Cast iron
- Impeller: Brass(noryI if required)
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ 12 ceramic/steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V, 115V/60Hz
models are available on request .
-
