- 商品名称: JETS series
- 商品编号: JETS
The JETS series pumps are with an automatic ejector system, stainless steel pump body and spare parts . These pumps are suitable for clean water and chemically aggressive liquid. They are very reliable,safe and simple to use.
-
- Pump body: Stainless steel AISI 304
- Impeller: Noryl (Stainless steel if required)
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ 12 ceramic/steatite/graphite
- Shaft: Stainless steel AISI 420
- Thermal Protector
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz,220/440V/60Hz,
Single phase 230V, 240V, 127V,11 0V,115V/60Hz
models are available on request
-
DIMENSIONS
TYPE
DIMENSIONS(mm)
a c f h H1 H2 w n n1 g s JETS-40
97 195 378 230 99 153 104 130 94 7 11 JETS-60
97 195 378 230 99 153 104 130 94 7 11 JETS-80
97 195 378 230 99 153 104 130 94 7 11 JETS-100
97 195 378 230 99 153 104 130 94 7 11 JETS-110

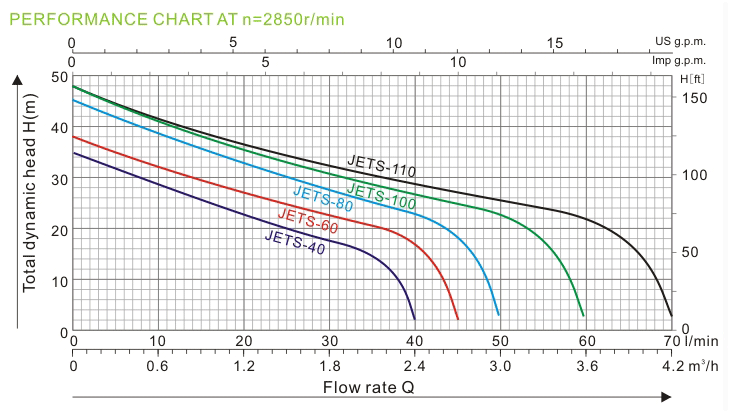

97 195 378 230 99 153 104 130 94 7 11 PERFORMANCE DATA
power Ampere
1~220V
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW JETS-40
0.45 0.33 2.7 2850 40 35 9 1"*1" 420*220*220 6.5 JETS-60
0.5 0.37 3 45 38 8.3 JETS-80
0.75 0.55 3.6 50 45 9.4 JETS-100
1 0.75 4.8 60 48 10.4 JETS-110
1.2 0.9 5.6 70 48 11.0
