- Product introduction
- Construction features
- Technical data
-
- 商品名称: DZD SERIES
- 商品编号: DZD SERIES
The pumps are particularly suitable for agriculture applications. We supply both powered with electric motor, they have a compact size and are extremely reliable, very simple to use.
-
- Pump body: Aluminum alloy
- Impeller: Cast iron
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ20, φ 25 ceramic steatite/graphite
- Shaft: Stainless steel AISI 420
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V,115V/60Hz
models are available on request
-

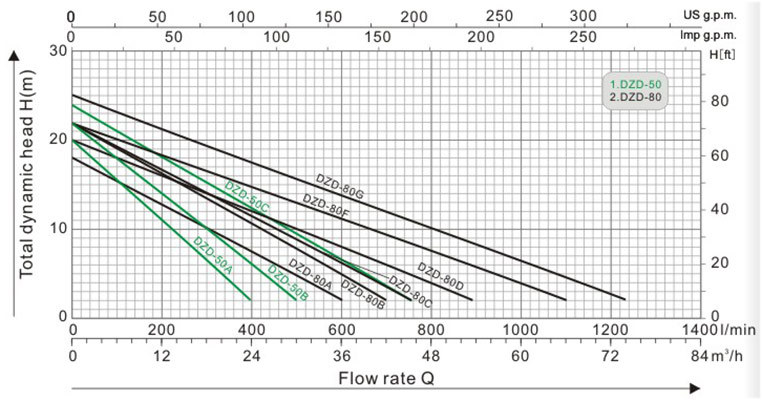

TYPE power Ampere
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW 1~220V 3~380V DZD-50A/T
2 1.5 9.6 3.5 2850 400 20 9 2"*2" 550*320*420 21.6 DZD-50B/T
2.5 1.85 11 4.3 500 22 22.3 DZD-50C/T
3 2.2 13.5 5 750 24 23.2 DZD-80A/T
2.5 1.85 11 4.3 600 18 3"*3" 630*350*450 22.6 DZD-80B/T
3 2.2 13.5 5 700 22 23.6 DZD-80C/T
4 3 13.5 5 750 22 28.5 DZD-80D/T
5.5 4 28 8.5 900 20 31.2 DZD-80F/T
7.5 5.5 - 11 1100 22 34.3 DZD-80G/T
10 7.5 - 15 1270 25 43.0
