- 商品名称: TPB25 SERIES
- 商品编号: TPB25 SERIES
Application
Suitable for domestic application such as central heating installations, industrial circulating systems, air conditioning and chilled water and circulation systems etc
-
Operating conditions
- Suitable liquid: Heating water to VD12035 Water/glycol mixtures, max. mixing ratio: 1:1 Hydraulic corrections required for mixing ratio above 20%
- Liquid temperature range: -10C+110C
- Max. working pressure 10 bar
- Ambient temperature permissible up to 40°C
Accessories
- Union connector fittings, thermal insulation
Mounting positions
- Pump shaft in the horizontal plane, terminal box optionally 3.6.9 or 12 o' clock
Pump equipment
- Screwed end single head pump
- Manual 3-speed control
- Non-overloading single phase motor
Motor
Mains power: 1 ~230V/50Hz Insulation Class F Protection IP44
Material
Pump body: Cast iron
Impeller: PPO
Shaft with rotor: Porcelain
TPB -15/6
TPB: Screwed-end pump
25: Connection size
6:Rated shut-off head(m)
TPB -25/8
TPB: Screwed-end pump
25: Connection size
8:Rated shut-off head(m)
-

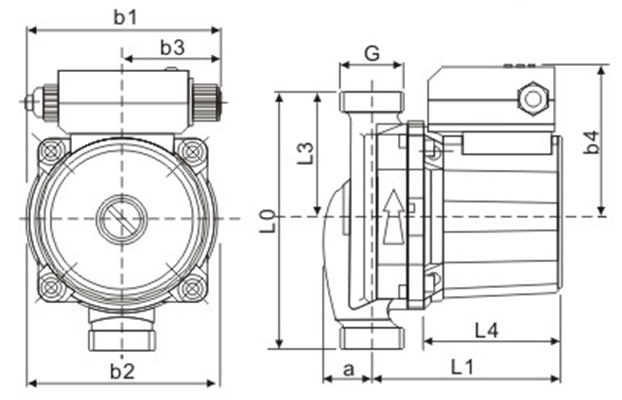

DIMENSIONS
TYPE
DIMENSIONS(mm)
b1 b2 b3 B4 a L0 L1 L3 L4 G TPB-25/6
100 92.5 54 73 33 130 97 90 79 1½" TPB-25/8

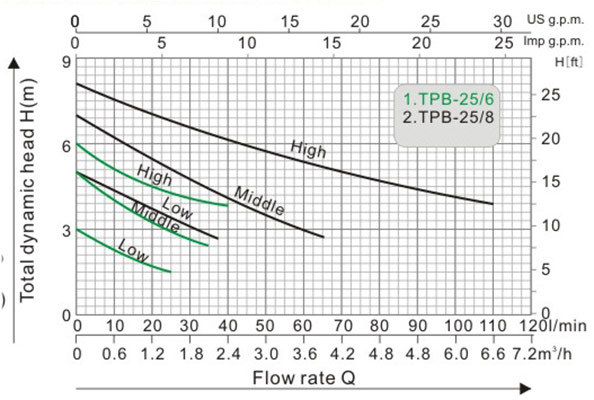

108.5 110.5 49 77 35.5 180 121 90 90.5 1½" TYPE power Max.Flow
(I/min)
Max.Head
(m)
Inlet/outlet
Inch(mm)
N.W
(kg)
HP KW TPB-25/6(High)
0.12 93 40 6 1½"1½"(38) 3.2 TPB-25/6(Middle)
0.09 67 35 5 1½"1½"(38) 3.2 TPB-25/6(Low)
0.06 46 25 3 1½"1½"(38) 3.2 TPB-25/8(High)
0.22 165 110 8 1½"1½"(38) 4.2 TPB-25/8(Middle)
0.15 115 66 7 1½"1½"(38) 4.2 TPB-25/8(Low)
0.1 75 38 5 1½"1½"(38) 4.2
