- Product introduction
- Construction features
- Technical data
-
- 商品名称: FRP SERIES
- 商品编号: FRP SERIES
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 11OV, 115V/60Hz models are available on request
-
- Pump body: Seal mounting
- Pump foot and diffuser: Glass loaded/polypropilen
- Impeller: Glass loaded noryl
- Motor shaft: Stainless steel AISI420
- Mechanical seal: Graphite and Alumine
- Motor housing: Aluminium L-2521.
- Windings impregnated with epoxy resin
MOTOR:
Asynchronous, two poles.
IP55 protection .
Class Finsulation .
Continuous operation.
Built-in thermal protection .
Quiet running single-stage centrifugal pump,
complete with prefilter.
APPLICATIONS:
Recycling of water from small transportable pools.
-

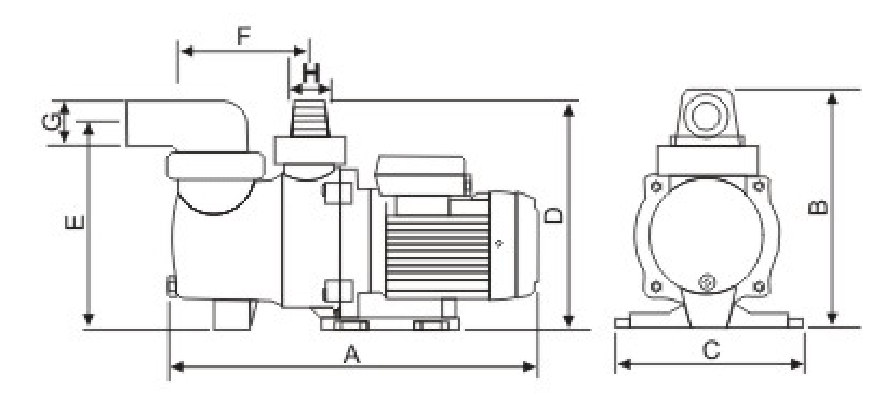

DIMENSIONS
TYPE
DIMENSIONS(mm)
A B C D E F G H kg FRP-180
124 187 215 378 50 120 120 130 8.3 FRP-250
124 187 215 378 50 120 120 130 9.4 TYPE Ampere

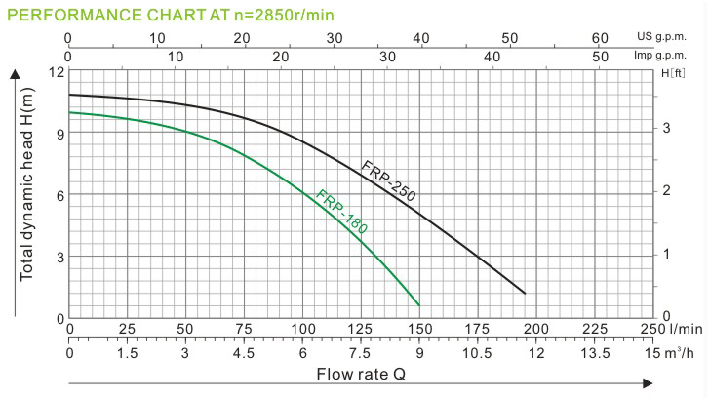

1~230V
P1(kW） 1~ power μF
Q.
l/min
m3/h
25
1.5
50
3
75
4.5
100
6
125
7.5
150
9
175
10.5
190
11.4
HP KW FRP-180
1.53 0.32 0.18 0.25 6 H
(m)
9.6 9.1 8 6.1 3.8 0.6 - - FRP-250
1.97 0.43 0.25 0.33 12 10.6 10.3 9.8 8.5 6.9 5.1 2.8 1.2
