- Product introduction
- Construction features
- Technical data
-
- 商品名称: FCP-S SERIES
- 商品编号: FCP-S SERIES
MOTOR:Asynchronous, two poles. IP55 protection.Class F insulation.continuous operation.Single phase version built-in thermal protection.
-
- Pump body,Pump foot and diffuser:
Glass loaded polypropilen
- Impeller: Glass loaded noryl
- Motor shaft: Stainless steel AIS1420
- Mechanical seal: Graphite and Alumine
- Motor housing: Aluminium L-2521.
- Windings impregnated with epoxy resin
Quiet running single-stage centrifugal pump,self-priming, complete with prefilter.
APPLICATIONS:
Recycling of water from small transportable pools
-

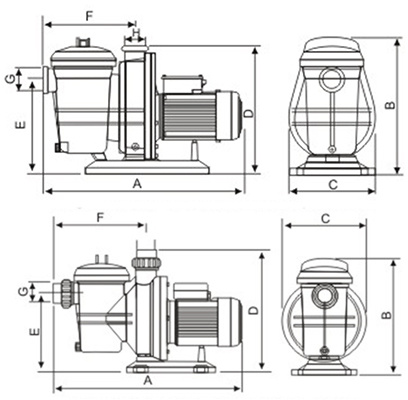

DIMENSIONS
TYPE
DIMENSIONS(mm)
A B C D E F G H kg FCP-370S
532 330 238 345 225 262 50 50 9.4 FCP-550S
532 330 238 345 225 262 50 50 107 FCP-750S
532 330 238 345 225 262 50 50 11.4 FCP-1100S
612 429 268 397 295 284 63 63 18 FCP-1500S
612 429 268 397 295 284 63 63 21 TYPE Ampere
P1(kW） power μF

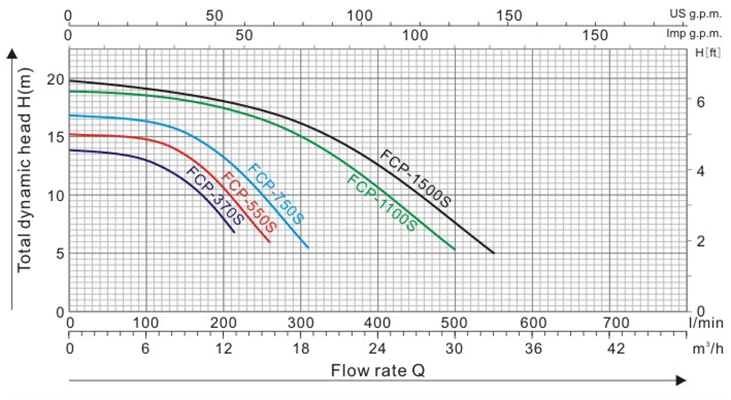

Q.
l/min
m3/h
40
2.4
80
4.8
120
7.2
160
9.6
215
12.9
265
15.9
290
17.4
325
19.5
1~ 3~ 1~ 3~ KW HP 230V 230V 400V FCP-370S
3.6 2.4 1.4 0.8 0.8 0.37 0.5 16 H
(m)
13.6 13.2 12.6 10.9 6.7 - - - FCP-550S
5.1 3.3 1.9 1.1 1.0 0.55 0.75 16 15.2 15 12.5 13.1 9.9 6 - - FCP-750S
5.8 3.8 2.2 1.2 1.2 0.75 1.0 16 16.9 16.5 16 15 12.9 10 8.4 5.9 TYPE 1~ 3~ 1~ 3~ KW HP μF 100
6
150
9
200
12
250
15
350
21
450
27
500
30
550
33
230V 230V 400V FCP-1100S
8.59 5.5 3.18 1.96 1.96 1.1 1.5 25 18.5 18.2 16.5 13 8.2 5.5 - - FCP-1500S
9.68 6.73 3.89 2.19 2.25 1.5 2 30 19 18.5 17.5 14.5 10.3 7.5 5 -
