- Product introduction
- Construction features

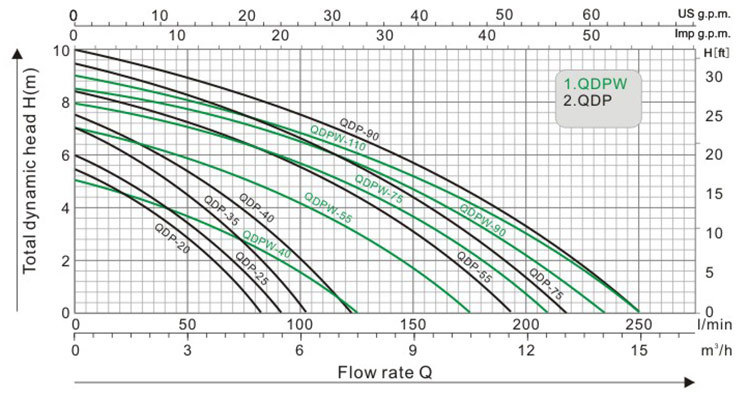

- Technical data
-
- 商品名称: QDP SERIES
- 商品编号: QDP SERIES
These pump are suitable for lifting clear water no containing abrasive substances. These pumps have been designed for easy use and are extremely reliable even when subjected to continuous use (e. g. In fountains), since the motor is making maintenance and repair more simple.
-
- Pump body: Plastic
- Impeller: Plastic
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP68
- Duty: Continuously rated
- Mechanical seal: φ 12 ceramic steatite/graphite
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V, 115V/60Hz
models are available on request
-
TYPE
Power
(W)
(V)
&
(Hz)
Max.
pump rate
(I/min)
Max.
Height
(m)
Max.
Depth
(m)
Dia.
of pipe
Cable(mm2)
Length
of cable
(m)
Package size
(mm)
Measurement
(4pcs)
(mm)
Weight
approx
(kg)
QDP-20
200 230/50
115/60
83 5.4 5 1-1/2"
H05RH-F3G0.75
10
220*160*310 460*340*330 15.5/17
QDP-25
250 92 6 5 H05RH-F3G0.75 10
220*160*310 460*340*330 15.5/17
QDP-35
350 103 7 5 H05RH-F3G0.75 10
220*160*310 460*340*330 16.5/18
QDP-40
400 122 7.5 7 H05RH-F3G0.75 10
220*160*310 460*340*330 16.5/18
QDP-55
550 192 8.5 8 H05RH-F3G1.0 10
220*160*310 460*340*330 17/19
QDP-75
750 217 9.5 8 H07RH-F3G1.0 10
220*160*340 460*380*360 19/21
QDP-90
900 250 10 8 H07RH-F3G1.0 10
220*160*340 460*380*360 20.5/22
QDPW-40
400 125 5 5 H05RH-F3G0.75
10
220*160*340 460*380*360 16.5/18
QDPW-55
550 175 7 7 H05RH-F3G1.0 10 220*160*340 460*380*360 17.5/19
QDPW-75
750 208 8 8 H07RH-F3G1.0 10 220*160*370 460*380*385 19/21
QDPW-90
900 233 8.5 8 H07RH-F3G1.0 10 220*160*370 460*380*385 20.5/22
QDPW-110 1100 250 9 8 1-1/3" H07RH-F3G1.0 10 220*160*370 460*380*385 21.5/23
