- 商品名称: PM SERIES
- 商品编号: PM SERIES
PM type peripheral pump forms a complete set with the motor on which it is mounted together. The self-srcking water pump is well equipped with the compact mechanism and installation is very easy and has light weight and covers small areas and consumes little electricity better for domestic appliance. It has high quality mechanica to seal up against the leakage.
-
- Pump body: Cast iron
- Impeller: Brass
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ 12 ceramic steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V,115V/60Hz
models are available on request
-

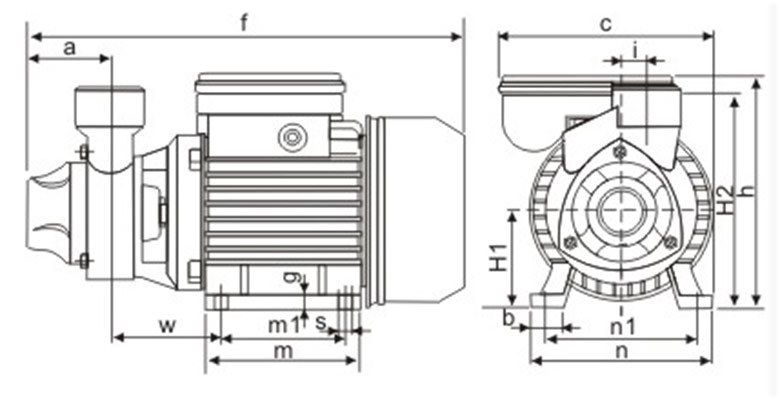

DIMENSIONS
TYPE
DIMENSIONS(mm)
a f c h H1 H2 i m m1 n n1 w b g s PM-45
53 281 141 151 63 143 16 100 80 120 100 72 23 7.5 9 PM-50
55 305 155 170 71 157 20 110 90 135 112 77 25 9 10 PM-60
55 305 155 170 71 157 20 110 90 135 112 77 25 9 10 TYPE power Ampere
1~220V
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW PM-45/KF1/KF0
0.5 0.37 2.6 2850 35 35 9 1"*1" 290*170*180 5.9 PM-50/KF2
0.75 0.55 3.6 45 50 330*185*205 9.7 PM-60/KF3
1 0.75 4.8 50 60 10.4
