- Product introduction
- Construction features
- Technical data
-
- 商品名称: TPS SERIES
- 商品编号: TPS SERIES
The pump is with peripheral impeller containing numerous radial blades in its edge. Water is threw outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller,generate high pressure. These pumps have a compact size and are very economical. They have various appearances and motor shells to the different operating requirements.
-
- Pump body: Cast iron
- Impeller: Brass
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ12 or φ 1 6 ceramic steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V,115V/60Hz
models are available on request
-
DIMENSIONS
TYPE
DIMENSIONS(mm)
a f
c h H1 H2 i m m1 n n1 w b g s TPS-60
25 240 145 198 63 164 25 98 80 120 100 63 22 8 7 TPS-70
28 265 170 216 71 175 30 110 90 134 112 60 23 8 7 TPS-80

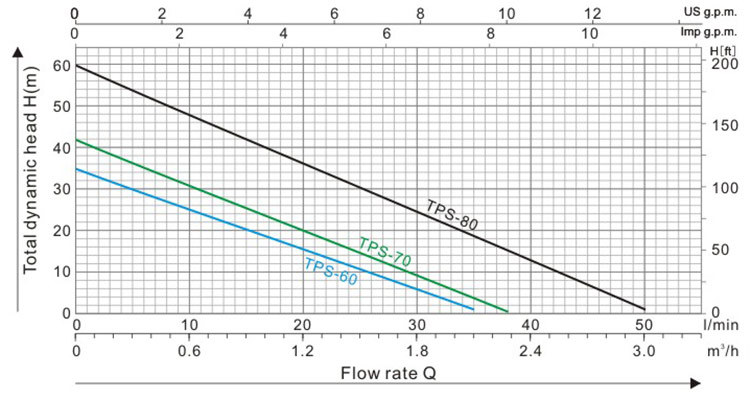

28 265 170 216 71 175 30 110 90 134 112 60 23 8 7 TYPE power Ampere
1~220V
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW TPS-60
0.5 0.37 2.6 2850 35 35 9 1"*1" 260*165*215 7.3 TPS-70
0.75 0.55 3.6 45 50 285*195*240 10.5 TPS-80
1 0.75 4.8 50 60 285*195*240 11.2
