- Product introduction
- Construction features
- Technical data
-
- 商品名称: DTm SERIES
- 商品编号: DTm SERIES
The pump is suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. They have a compact size and are extremely reliable, very simple to use and almost maintenance-free.
-
- Pump body: Cast iron
- Impeller: Brass(Cast iron if required)
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ12, φ 16 ceramic steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V, 11 5V/60Hz models are available on request
-
DIMENSIONS
TYPE
DIMENSIONS(mm)
a f h c H1 w m m1 n n1 b g s DTm-16/T
43.5 317 241 192 92 78 138 110 170 135 28 28 10 DTm-20/T

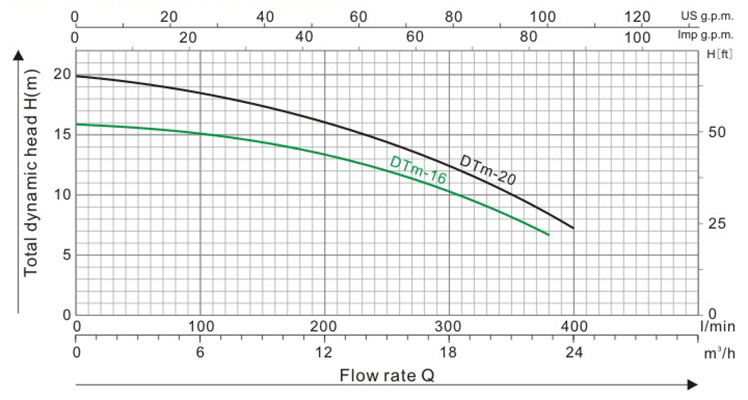

58 382 261 204 111 91 158 125 190 160 33 30 10 TYPE power Ampere
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW 1~220V 3~380V DTm-16/T
1.5 1.1 7.5 2.7 2850 380 16 9 2"*2" 410*220*275 17.9 DTm-20/T
2 1.5 9.5 3.5 400 20 19..2
