- 商品名称: PAM SERIES
- 商品编号: PAM SERIES
Quiet running horizontal and vertical multi-stage centrifugal pumps
-
- Pump body and impellers: Stainless steel AISI 304
- Motor shaft: Stainless steel AISI 420
- Diffusers: Glass loaded polymer
- Flanges, suction and discharge mountings: Cast iron
- Mechanical seal: Graphite and Steatite .
- Motor housing: Aluminum L-2521
Motor:
Asynchronous, two poles
IP 44 protection
Class F insulation
Continuous operation
Single phase version built-in thermal protection
-

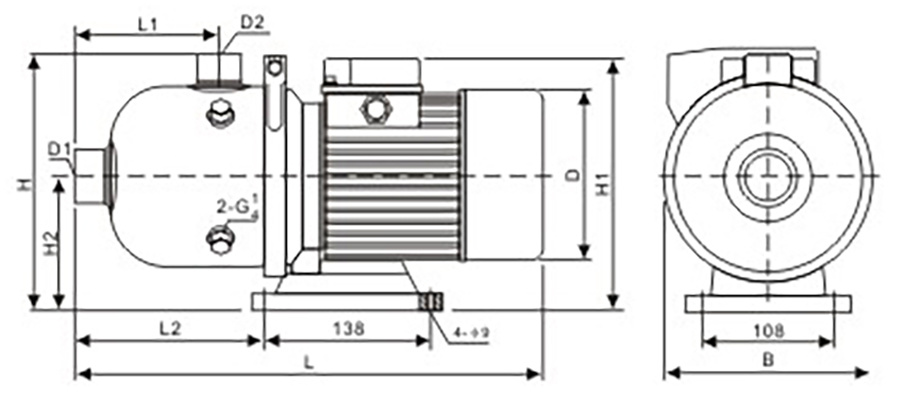

DIMENSIONS
TYPE D1 D2 H2 H L1 L2 L D H1 B Weight
(kg)
3HP 1HP PAM2-20
G1 G1 112 215 120 165 400 142 215 225 165 10
PAM2-30
10.5
PAM2-40
11
PAM2-50
11
PAM2-60
12.5
PAM4-20
G1¼ G1 112 215 120 165 400 142 215 225 165 10.5
PAM4-30
11.5
PAM4-40
12
PAM8-10
G2 G2 118 268 178 280 540 156 230 240 230 15
PAM8-20
15.5
PAM8-30
17
PAM8-40
18.5
PAM8-50
20
TYPE
Power
(kW)
Q
(m3/h)
0.5 1.0 1.5 2.0 2.5 3.0 3.5 PAM2-20
0.37
H
(m)
19 18 16 14 13 11 9 PAM2-30
0.55
28 27 24 21 20 17 14 PAM2-40
0.55
36 34 32 28 26 23 17 PAM2-50
0.55
46 43 40 35 33 28 22 PAM2-60
0.75
54 50 48 42 38 33 25 1 2 3 4 5 6 7 PAM4-20
0.55
H
(m)
19 18 16 15 13 10 7 PAM4-30
0.75
28 27 24 22 19 15 10 PAM4-40
0.75
38 36 32 30 26 20 14 5 6 7 8 9 10 11 PAM8-10
0.75
H
(m)
9.5 9.3 9 8.5 7.5 6.5 5.5 PAM8-20
0.75
19 18.5 18 17 15 13 11 PAM8-30
1.1
29 28 27 25.5 22.5 20 17.5 PAM8-40
1.5
39 38 36 34 30 26.5 22.5 PAM8-50
2.2
49 47 45 42.5 38 33 28
