- Product introduction
- Construction features
- Technical data
-
- 商品名称: JETP SERIES
- 商品编号: JETP SERIES
The JETP series pumps are with pump body and spare parts in plastic, find many uses in domestic applications, gardens and supply water from wells, and so on.
These pumps are suitable for clean water and chemically aggressive liquid. They are very light reliable, safe and simple to use.
-
- Pump body: Plastic(reinforced ABS)
- Impeller: Plastic
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ 12 ceramic/steatite/graphite
- Shaft: Stainless steelAISI 420
- Thermal Protector
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz,220/440V/60Hz,
Single phase 230V, 240V, 127V,110V, 115V/60Hz
models are available on request
-

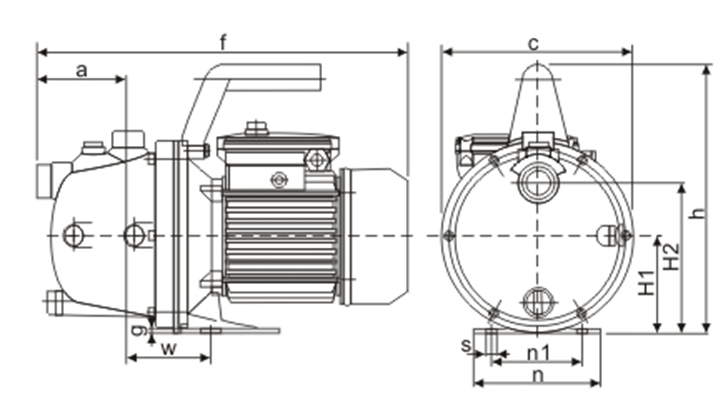

DIMENSIONS
TYPE
DIMENSIONS(mm)
a c f h H1 H2 w n n1 g s JETP-60
97 195 378 230 99 153 104 130 94 7 11 JETP-80
97 195 378 230 99 153 104 130 94 7 11 JETP-100
97 195 378 230 99 153 104 130 94 7 11 JETP-110
97 195 378 230 99 153 104 130 94 7 11 TYPE power Ampere
1~220V
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW JETP-60
0.5 0.37 3 2850 45 38 9 1"*1" 420*220*220 7.2 JETP-80
0.75 0.55 3.6 50 45 7.6 JETP-100
1 0.75 4.8 60 48 8.3 JETP-110
1.2 0.9 5.6 70 48 9.0
