- Product introduction
- Construction features
- Technical data
-
- 商品名称: JETDP SERIES
- 商品编号: JETDP SERIES
JETDP pump comprises a ejector unit and a centrifugal pump. The most remarkable character is it can be used to supply clean water from a relatively deep well, itis also suitable for chemically non-aggressive fluid To ensure the adequate counter pressure, it is always installed a foot valve with a filter on the suction opening.
-
- Pump body: Cast iron
- Impeller: Brass impeller
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanicalseal: φ 12 ceramic/steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V, 115V/60Hz
models are available on request
-

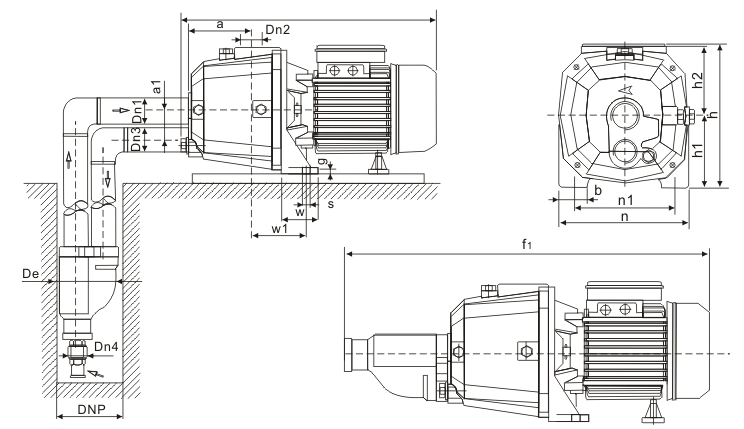

DIMENSIONS
TYPE
DIMENSIONS(mm)
DNP Dn1 Dn2 Dn3 De a a1 f f1 h h1 h2 n n1 w w1 b g s JETDP-225
4" 1.25" 1" 1" 96 95 43 387 520 196 98 95 182 142 55 84 40 g 11 JETDP-370
4" 1.25" 1" 1" 96 95 43 387 520 196 98 95 182 142 55 84 40 g 11 JETDP-505
4" 1.25" 1" 1" 96 95 43 387 520 196 98 95 182 142 55 84 40 g 11 TYPE power Ampere
1~220V
R.P.M Ejector
Type
well
depth
(m)
Capacity(l/min)
At discharge head
Packing Sizs
L*W*H
(mm)
Weight
NW
(kg)
HP KW 10m 15m 25m 35m JETDP-225
JDW-225
0.5 0.37 3 2850 E20 10 50 34 12 - 420*300*230 16 E20 15 34 20 5 - E30 20 17 13 7 - JETDP-370
JDW-370
0.75 0.55 3.6 E20 10 - 42 18 15 420*300*230 17.4 E20 15 - 25 16 10 E30 20 - 20 10 7 JETDP-505
JDW-505
1 0.75 4.8 E20 15 - 38 24 28 420*300*230 18.2 E30 20 - 30 17 15 E30 30 - 21 12 10
