- Product introduction
- Construction features
- Technical data
-
- 商品名称: STCM SERIES
- 商品编号: STCM SERIES
The pump is suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. They have a compact size and are extremely reliable, very simple to use and almost maintenance-free.
-
- Pump body: Stainless Steel(AISI304)
- Impeller: Stainless Steel
- Motor: closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ 16 ceramic steatite/graphite
- Shaft: Stainless SteelAISI 420
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V,11 5V/60Hz models are available on request
-

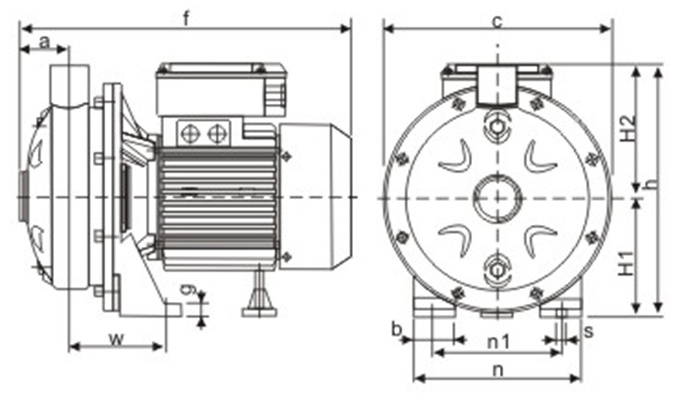

DIMENSIONS
TYPE
DIMENSIONS(mm)
a f h c H1 H2 n n1 w b g s STCM-050
52 302 196 170 88 108 130 100 80 30 9 7 STCM-075A
52 302 196 170 88 108 130 100 80 30 9 7 STCM-100A
52 315 232 213 108 124 158 120 92 39 9 9 STCM-100B
52 315 232 213 108 124 158 120 92 39 9 9 STCM-120A/T
52 315 232 213 108 124 158 120 92 39 9 9 STCM-150A/T
52 386 252 213 108 124 158 120 92 39 11 9 STCM-150B/T
52 386 252 213 108 124 158 120 92 39 11 9 STCM-150C/T
52 386 252 213 108 124 158 120 92 39 11 9 STCM-200A/T
52 386 252 213 108 124 158 120 92 39 11 9 STCM-200B/T
52 386 252 213 108 124 158 120 92 39 11 9 STCM-250A/T
52 386 252 213 108 124 158 120 92 39 11 9 STCM-250B/T
52 386 252 213 108 124 158 120 92 39 11 9 TYPE power Ampere
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW 1~220V 3~380V STCM-050
0.5 0.37 3.0 - 2850 120~10
10~16
9 1¼"*1" 335*230*240 8.1
STCM-075A
0.75 0.55 3.6 - 120~10
14~19
8.8
STCM-100A
1 0.75 4.5 - 120~10
19~25
10
STCM-100B
1 0.75 4.5 - 180~40
11~19
10
STCM-120A/T
1.2 0.9 6.7 2.2 120~10
23~29
11
STCM-150A/T
1.5 1.1 7.5 2.7 120~10
27~33
395*250*260 14.6
STCM-150B/T
1.5 1.1 7.5 2.7 180~40
18~26
14.6
STCM-150C/T
1.5 1.1 7.5 2.7 260~60
9~21.5
1½"*1" 14.6
STCM-200A/T
2 1.5 9.6 3.5 180~40
21~ 31
1¼"*1" 15.0
STCM-200B/T
2 1.5 9.6 3.5 260~60
15~25.5
1½"*1" 15.8
STCM-250A/T
2.5 1.85 11 4.3 180~40
25~37
1¼"*1" 16
STCM-250B/T
2.5 1.85 11 4.3 260~60
21~28.5
1½"*1" 17
