- Product introduction
- Construction features
- Technical data
-
- 商品名称: PSM SERIES
- 商品编号: PSM SERIES
Quiet running horizontal and vertical multi-stage centrifugal pumps
-
- Pump body and impellers: Stainless Steel AISI304
- Motor shaft: Stainless steel AISI- 420
- Diffusers: Glass loaded polymer
- Flanges, suction and discharge mountings: Cast iron
- Mechanical seal: Graphite and Steatite
- Motor housing: Aluminum L-2521
MOTOR:
Asynchronous, two poles.
IP44 protection.
Class F insulation.
Continuous operation.
single phase version built-in thermal protection.
-

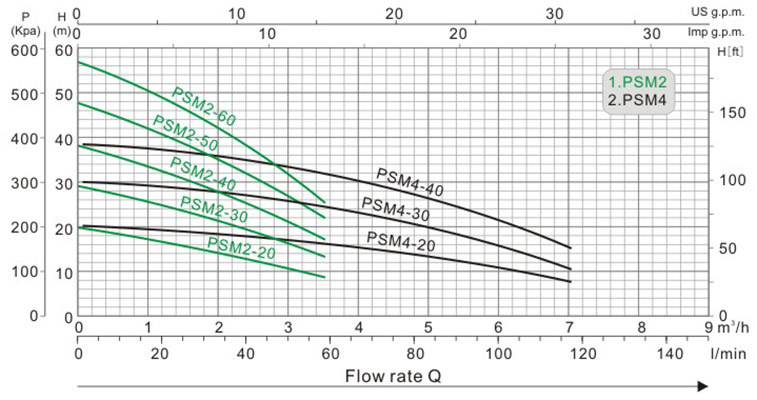

TYPE
Power
(kW)
Q
(m3/h)
0.5 1.0 1.5 2.0 2.5 3.0 3.5 PSM2-20
0.37
H
(m)
19 18 16 14 13 11 9 PSM2-30
0.55
28 27 24 21 20 17 14 PSM2-40
0.55
36 34 32 28 26 23 17 PSM2-50
0.55
46 43 40 35 33 28 22 PSM2-60
0.75
54 50 48 42 38 33 25 1 2 3 4 5 6 7 PSM4-20
0.55
H
(m)
19 18 16 15 13 10 7 PSM4-30
0.75
28 27 24 22 19 15 10 PSM4-40
0.75

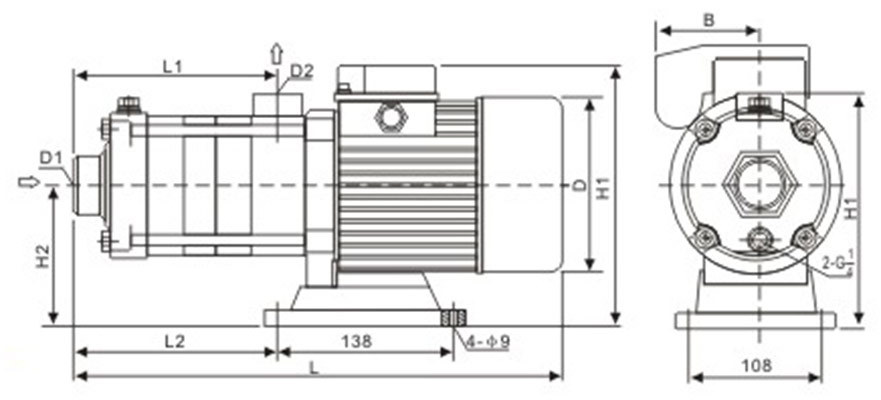

38 36 32 30 26 20 14 TYPE
D1 D2 H2 H1 L1 L2 L D H B Weight
(kg)
3HP 1HP PSM2-20
G1 G1 112 184 88
88 315 142 200 210 84 9.5 PSM2-30
106
106 333 10.5 PSM2-40
124
124 351 11 PSM2-50
142
142 369 11.5 PSM2-60
160
160 387 12.5 PSM4-20
G¼ G1 112 184 104
104 330 142 200 210 84 10 PSM4-30
131
131 357 10.5 PSM4-40
158
158 384 12
