- Product introduction
- Construction features
- Technical data
-
- 商品名称: SCM SERIES
- 商品编号: SCM SERIES
The pump is micro centrifugal pumps suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. They have a compact size and are extremely reliable, very simple to use and almost maintenance-free.
-
- Pump body: Cast iron
- Impeller: Brass(noryl, Aluminum if required)
- Motor: Closed, externally ventilated
- Insulation class: B(Class F if required)
- Protection class: IP44/IP54
- Duty: Continuously rated
- Mechanical seal: φ12, φ 14 ceramic steatite/graphite
- Shaft: Carbon steel AISI 1045(Stainless steel AISI 420 if required)
The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz, 220/440V/60Hz,
Single phase 230V, 240V, 127V, 110V,115V/60Hz models are available on request
-

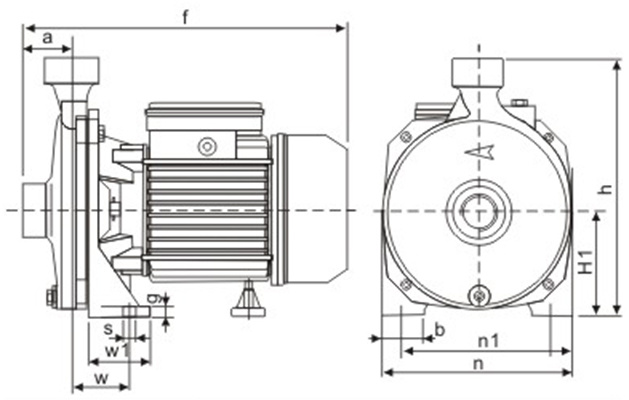

DIMENSIONS
TYPE
DIMENSIONS(mm)
a f h H1 C w w1 n n1 g s SCM-16
45 280 200 85 158 45 40 110 40 9 10 SCM-22
45 280 200 85 158 45 40 110 40 9 10 SCM-42
45 297 240 97 182 53 55 142 40 9 11 SCM-50

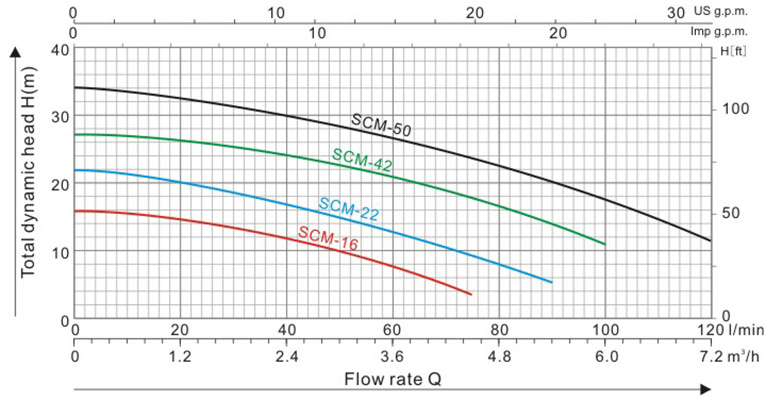

45 297 240 97 182 53 55 142 40 9 11 TYPE power Ampere
1~220V
R.P.M Q.Max
(I/min)
H.Max
(m)
S.Head
(m)
Pipe Dia L*W*H
(mm)
N.W
(kg)
HP KW SCM-16
0.45 0.33 2.7 2850 75 16 9 1"*1" 310*160*225 8.2 SCM-22
0.5 0.37 3 90 22 310*160*225 9 SCM-42
0.75 0.55 4 100 27 10.5 SCM-50
1 0.75 5 120 34 310*225*275 14.8
